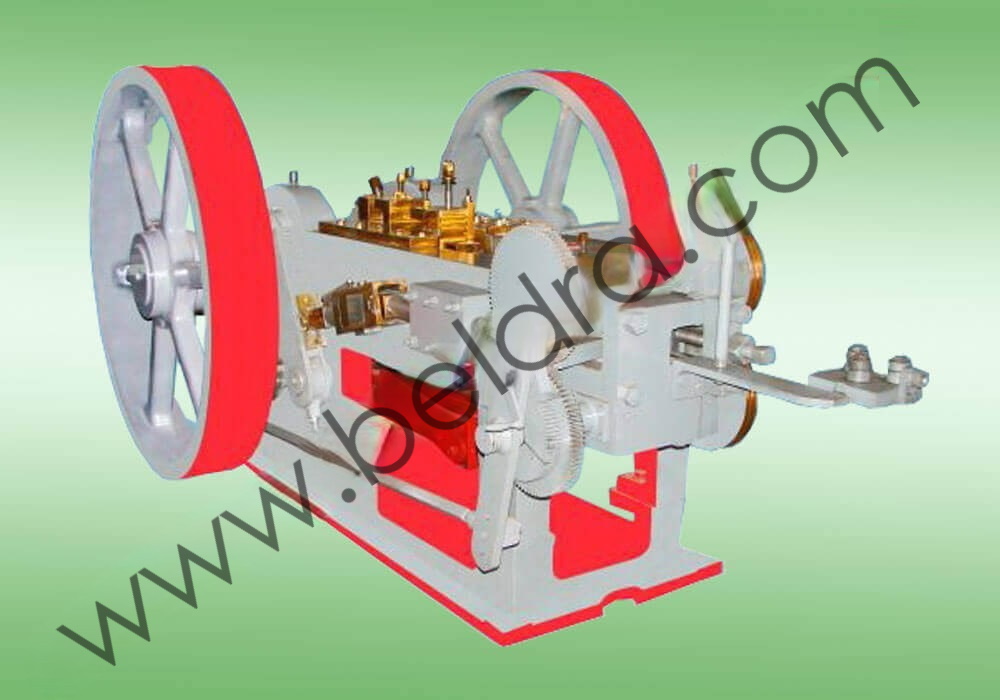

AUTOMATIC COLD HEADING MACHINE

0 out of 5 based on 0 customer ratings
(0 customer reviews)

We offer the premium quality Cold Heading Machine that gives high-volume production. The Cold Heading Machine manufactured, exported and supplied by us, is extremely durable as it is made from high grade raw material. It is designed using the advanced technology; hence it is maintenance free and has long functional life.

We offer the premium quality Cold Heading Machine that gives high-volume production. The Cold Heading Machine manufactured, exported and supplied by us, is extremely durable as it is made from high grade raw material. It is designed using the advanced technology; hence it is maintenance free and has long functional life.

Advantages :
The cold heading machine is extremely safe to use as the Cut-off and knock-out mechanism has various safety devices. Hence, even in the case of any irregular functioning, it avoids the accidents.

The Cold heading machine slide has a mobile design that carries two heading punches for the processes of straightening and finishing.

The two punches & dies are easily adjustable at the accessible points and can be operated manually.

Our cold heading machine has the vertical wire straightening bearing rollers designer equipment that enables straight wire feeding facilitating the processing of long bolt.

The various parts of the cold heading machines such as all rollers, roller pins, cames and are made high grade steel which is properly heat-treated and grounded.

It Produces :

    • Bolts
    • Screws
    • Rivets
    • Taper Roller Heading, etc

.

Cold Heading Machine Specifications:

Model  No. Capacity (Length x Dia)
Production (Per Minute) Power Required (H.P x RPM
IMC-CHM-2 2″ x 1/4″ (50MM x 6MM) 80-85 3 x 960
IMC-CHM-2.5 2.5″ x 5/16″ (65MM x 8MM) 70-75 5 x 960
IMC-CHM-3 3″ x 3/8″ (75MM x 10MM) 60-65 10 x 960
IMC-CHM-4 4″ x 1/2″ (100MM x 12MM) 45-50 15 x 960
IMC-CHM-5 5″ x 5/8″ (125MM x 15MM) 35-40 20 x 960
IMC-CHM-6 6″ x 3/4″ (150MM x 20MM) 25-30 35 x 1440
