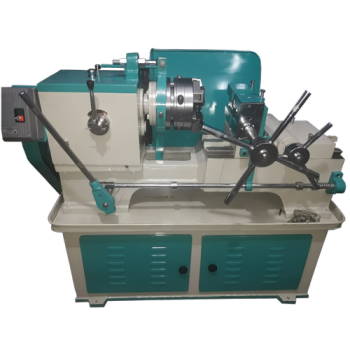

HYDRAULIC THREAD ROLLING MACHINES 3ROLL

0 out of 5 based on 0 customer ratings
(0 customer reviews)

Beldra Industries Hydraulic Scaffolding Pipe Thread rolling machines are used to produce high quality screws and other small tools and components. They are ideal for high volume production, are highly economical and ensure excellent dimensional accuracy. Beldra Industries is a well known hydraulic machines manufacturer, supplier and exporter of Hydraulic Rolling Machines-Two Roll Types, Hydraulic Rolling Machines-Three Roll Types, etc.

Beldra Industries Hydraulic Scaffolding Pipe Thread Rolling Machine is used to produce high quality scaffolding pipe threads. They are ideal for high volume production, are highly economical and ensure excellent dimensional accuracy. Beldra Industries is a well known hydraulic machines manufacturer, supplier and exporter of Hydraulic Rolling Machines-Two Roll Types, Hydraulic Rolling Machines-Three Roll Types, etc. These hydraulic machines are ideal for mass production purposes and help in creating the best surface finishes.

The 3 rollers Beldra Industries-3R Hydraulic Pipe thread rolling machine operates hydraulically. The simultaneously and concentrically of three forces at 120 assure stability of the work piece during the rolling and as a consequence the maximum geometrical precision of the work piece. The elimination of the support blade consents a better finishing of the piece and the execution of particularly delicate profiles. The hydraulic thread rolling machine is suitable for rolling pipes, rolling bolts, lapping work with a high class precision and for mass production of Scaffolding pipe jack and solid jacks screws etc.

The maximum values specified above can not be achieved simultaneously

Hydraulic Thread Rolling Machine

Model    IMC-3R-25  IMC-3R-50 IMC-3R-75
Work Range Out Side Diameter
Thread Length in Feed
Thread Length Through Feed
(8-25 MM)   (1/2″- 1″)
(38 MM)       (1.1/2″)
(Indefinite)  (Indefinite)
(25-50 MM)   (1″- 2″)
(50 MM)         (2″)
(Indefinite)    (Indefinite)
(32-75 MM)   (1.1/4″- 3″)
(75 MM)         (3″)
(Indefinite)    (Indefinite)
Roll Dies Max. Out Side Dia.
Max. Inside Dia
Spindle Box
140
60
40
140
60
40
170
80
54
Motor For Roll Spindle 3 H.P. 3 H.P. 7.5 H.P.
3 Phase AC For Hydraulic System 1 H.P. 1 H.P. 3 H.P.
Coolant Pump 0.1 H.P. 0.1 H.P. 0.1 H.P.
